The SoniShield Display allows you to have a local physical display for your Temperature points.
To connect a SoniShield Display please follow the steps listed below.
1. Use a pin or paperclip to press the inset reset button (not the external silence alarm button) on the bottom of the Display. This button does not need to be held down for any length of time. Just press and release.
2. From the Settings page in the SoniCloud Mobile App select "Scan for SonShield Meters (BLE)."

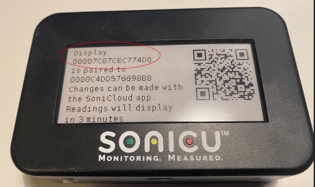

3. From the Bluetooth Meters page, select the Display you wish to pair. The serial number can be found on the screen of the Display. This can easily be found in the list by comparing the last for characters in the serial number.

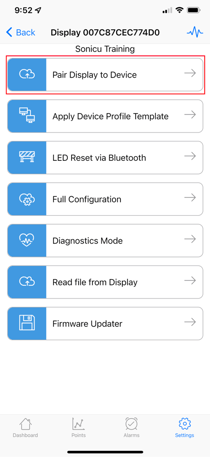

4. Once connected to the Display, choose "Pair Display to Device."

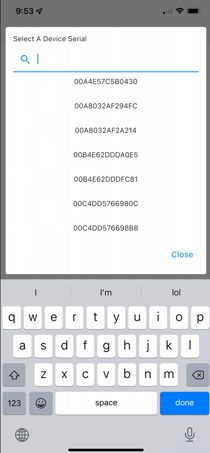

5. On the next page you will see a line stating "Select a Device Serial." Click on this line and a drop down list of all available meters will be displayed.

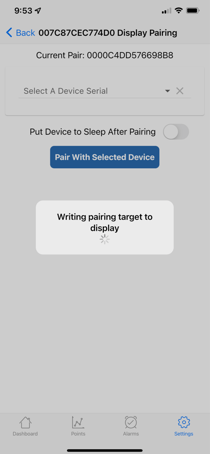

6. Select the Meter Serial number you wish to Pair to the Display. You may also type in the last 4 characters of the Serial number of the meter to direct your search. Select the Blue button titled "Pair with Selected Device." The Display will immediately start connecting to the Meter.

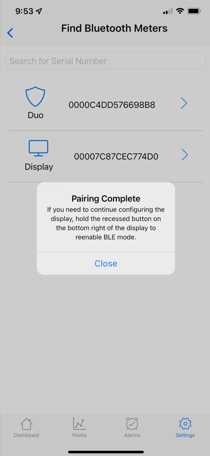

7. After a few moments, the Pairing process with be complete. The Display is now Paired to the Meter.
For any more questions regarding Pairing a Display to a Meter please contact Sonicu Support for assistance. Sonicu Support can be reached by email at support@sonicu.com or by calling (317) 620-8627. Sonicu Support is available M-F 8 AM- 5 PM EST.
