Setting up Enterprise Wi-Fi Connectivity (802.1x)

If your network requires additional Authentication steps there are additional steps in programming that must be taken

1. Open the SoniCloud mobile app which should have been installed on your cellular device during the kick-off call and log in.  If you have not yet downloaded the SoniCloud mobile app, please use the QR code to download the app and use your SoniCloud login credentials to log in.



2. On the Dashboard page of your SoniCloud Mobile App, select "Settings" in the bottom right.

3. On the “Settings” page of the SoniCloud Mobile app, select “Scan for SoniShield Meters (BLE)”.  The SoniCloud Mobile app will then list any Duos, Views, and Displays that have been powered on and are in proximity.

4. Select the Duo that you are currently implementing by either typing the last 4 numbers/letters from the serial number on the Duo as shown on the screen or scrolling down the list to locate the correct serial number.  Select the meter, and the SoniCloud Mobile app will read the configuration of the meter.

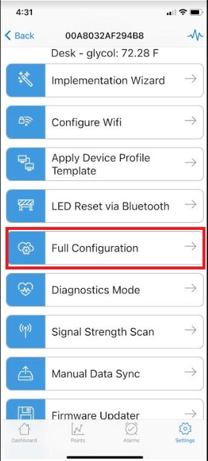

5. From the list of options, choose "Full Configuration"

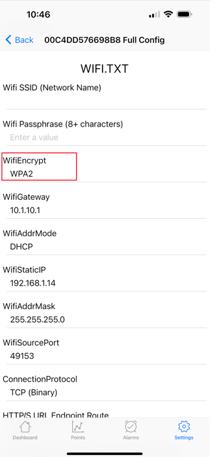

6. Under the WIFI.TXT section, select WifiEncrypt

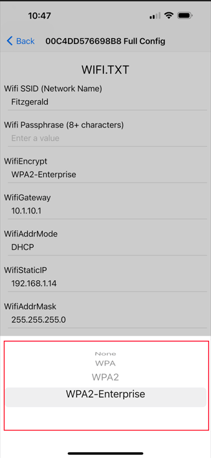

7. At the bottom of the page, use the scrolling feature to select "WPA2-Enterprise".

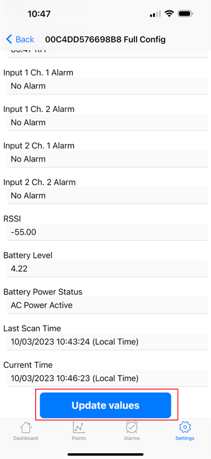

8. At the bottom of the "Full Configuration: page select "Update values".

9.  At the top left corner, hit "Back"

10. Select "Enterprise Wifi".

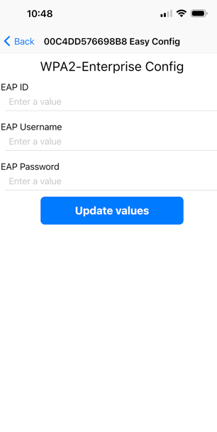

11. Enter the necessary "EAP Username", and "EAP Password" into the respective fields.  Following this, select "Update values".

12.  Your meter is now programmed to your Enterprise WiFi Network.



For additional questions regarding your Enterprise WiFi Network please contact Sonicu Support for assistance.  Sonicu Support can be reached by email at support@sonicu.com or by calling 317-468-2345.  Sonicu Support is available M-F 8 am-5 PM EST.
