S-Series Door Closure Quick Start Installation and Activation Guide

The S-Series Door Closure is only compatible with SoniLink. If your Hub has not already been activated, please refer to the SoniLink Hub Quick-Start/Installation Guide before proceeding.

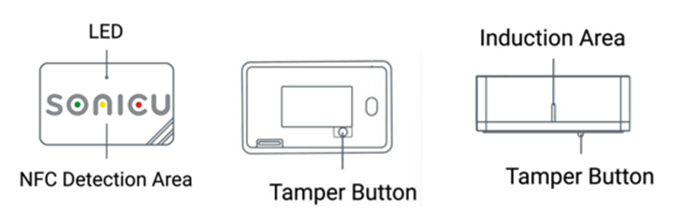

Hardware Description

Sensor

The Induction area is the target trigger area for the magnet to signal that the door is opened or closed.

The Tamper button must be installed with the tamper button depressed. If the Tamper button is removed or the tamper button is released, it will trigger a check-in and possible alarm from the SoniCloud platform.

Magnet

LED Patterns:

Unpackaging your S-Series Door Closure Kit

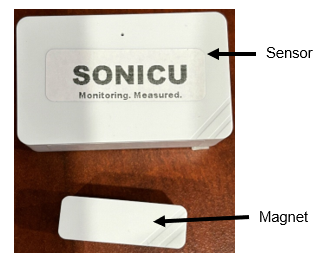

S-Series Door Closure out of packaging

S-Series Door Closure with plate (plate may be black or white)
Physical Installation

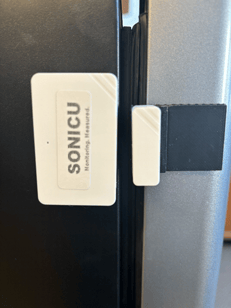

Installing the sensor and magnet with the plate on a refrigerator/freezer must be on the door opening side of the appliance (not the hinge side).

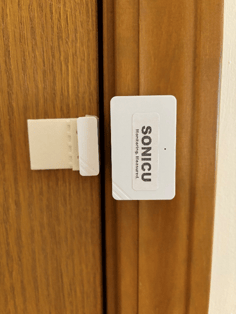

Installing the sensor and magnet on a room door the sensor will be placed on the door frame and the magnet with the plate should be placed on the inside of the door.
1. Remove the 3M Tape backing from the sensor.
2. Place the Sensor onto the very edge of the refrigerator opposite where the magnet will be placed, pressing gently for a secure seal.

  There will be a green flash when the Tamper button is securely depressed during installation. If there is a red flash, the Tamper button on the Sensor is not securely depressed and should be reinstalled to receive the green flash. (The flashes will not remain steady but only flashes).
3. Remove the 3M Tape backing from the magnet.
4. Attach the magnet to the raised portion of the plate so that the notched side of the magnet is on the front edge and will face the sensor when installed.
5. Determine where the magnet will be placed by lining it up with the notches on the sensor.

  The distance should not be more than 12mm between the Sensor and the magnet, otherwise it may affect the sensitivity of the open/close detection.

  The height distance should not be less than 7mm between the Sensor and the magnet, otherwise it may affect the sensitivity of the open/close detection.
6. Remove the backing of the tape on the bottom of the plate.
7. Place the magnet part on the door being sure to line up the notches on both the sensor and the magnet.
8. The green light will flash every time the door is open or closed. Verify the green light flashes by opening and closing the door a few times.

  Your S-Series Door Closure has now been installed. Please follow the SoniClould mobile app instructions to activate your sensor and add it to the SoniCloud site.
Device Setup via SoniCloud Mobile
1. Open SoniCloud Mobile (download using the QR code)

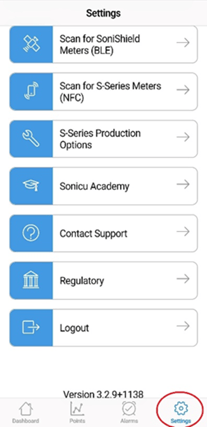

2. Go to settings at the bottom right of the mobile app.

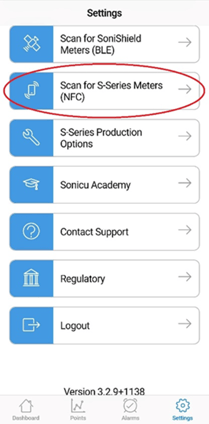

3. Select “Scan for S-Series Meters (NFC)”
4. Hold your phone to the meter to scan for the NFC chip (your phone must have NFC capabilities. This is the same function as Apply Pay, Samsung Pay, or Google Pay)

  For Andriod devices:

  For iPhone iOS devices:
5. Your phone will quickly scan for the NFC chip, and you should now be connected to the S-Series Door Closure Sensor

  Note: Phone cases may reduce connectivity scanning and may be necessary to remove the phone case from the smartphone for the NFC chip to connect fully.
6. You can now complete the Implementation Wizard through the app.
7. Select “Get Started!”
8. You will be prompted to take pictures of the S-Series meter.
9. Once you have taken a picture of the meter select “Complete Installation!”
10. You will see a pop-up to move on to the next step.
11. At the top of the page, you will see that your S-Series Meter is now connected.
12. Select “Next Step!”
13. Name the point and use the drop-down to place the point of monitoring in the correct zone.
14. Select “Setup all points to finish wizard”

  Once the point setup is complete, your implementation wizard is complete for this S-Series meter and you will be rewarded with some confetti!

Now that your hardware has been installed and can now be seen on the SoniCloud platform, the below checklist has been provided as a reminder of the next steps the Admin needs to take to protect your assets, maintain regulatory compliance, and improve operational efficiency:

If your site is still in Wizard status, complete the Wizard to view and use your dashboard or reach out to your Customer Success Manager for assistance.
Select the area on the left side of the SoniCloud platform that your newly installed monitoring point is located in.
Click "Edit" and then click the name of the newly added point to open the "Edit Point" properties page.
Verify Point Name and Zone are accurate.
Click the drop-down arrow on the "Alarm Profile" and select the correct alarm profile to be placed on the new point.
Click "View Alarm Profile" and verify the Excursion ("Threshold Alarms") is on (blue) and high and low limits are correct

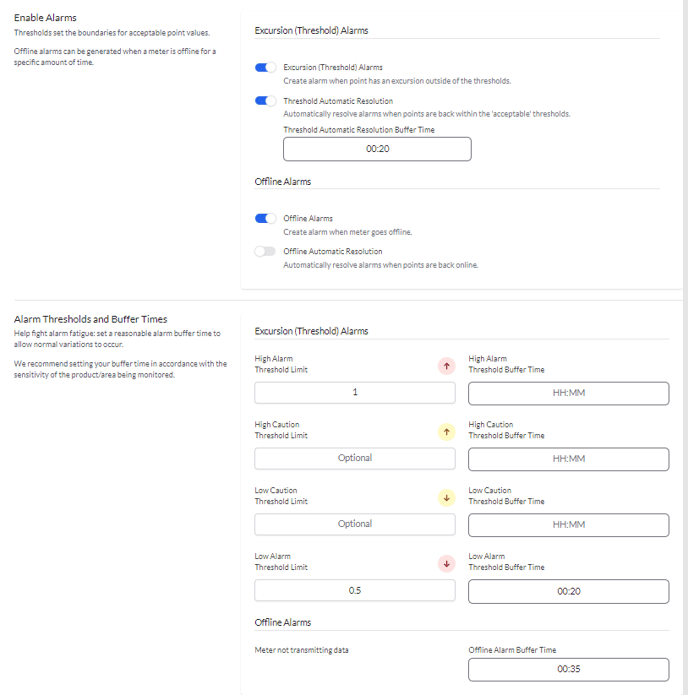

1. If the door is to remain open and alarms when the door is closed longer than the buffer time, follow this alarm profile.
  Note: Buffer times can be adjusted to meet your specifications
  Note: Threshold Automatic Resolution, Offline Alarms, and Offline Automatic Resolution are all optional and can be turned on or off to meet your specifications.
2. If the door is to remain closed and alarms when the door is ajar or open for longer than the buffer time, follow this alarm profile.
  Note: Buffer times can be adjusted to meet your specifications
  Note: Threshold Automatic Resolution, Offline Alarms, and Offline Automatic Resolution are all optional and can be turned on or off to meet your specifications.
3. Click "View users that receive alarms on this point" and verify users are set to receive alarms.
4. Click "Save Point"

For additional questions regarding the S-Series Door Closure please contact Sonicu Support for assistance. Sonicu Support can be reached by email at support@sonicu.com or by calling 317-468-2345. Sonicu Support is available M-F 8 am-5 PM EST.
