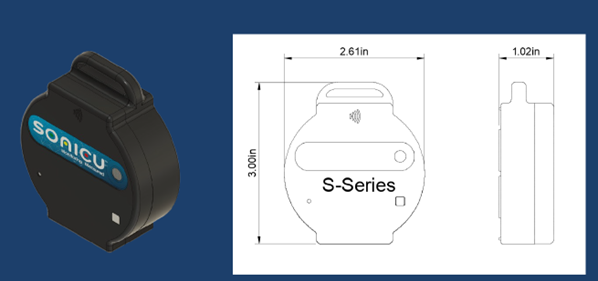

      S-Series Cold Storage, Temp & Humidity Quick Start Installation and Activation Guide



      The S-Series is only compatible with SoniLink.  If your Hub has not already been activated, please refer to the SoniLink Hub Quick-Start/Installation Guide before proceeding.



      1. Press the “User Button” for 2-4 seconds. (the green LED will flash twice to indicate the device is awake.)

      2. Wait for the LED to light up for 1-2 seconds indicating it has successfully connected to the SoniLink Hub.
      3. Open SoniCloud Mobile (download using the QR code)
      4. Go to settings at the bottom right on the mobile app.
      5. Select “Scan for S-Series Meters (NFC)”

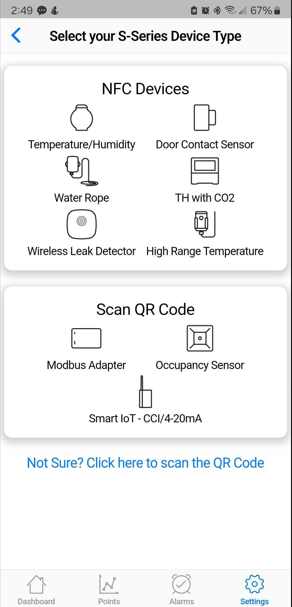

      6. Click the S-Series Device type that is being installed
      7. Hold your phone to the meter to scan for the NFC chip (your phone must have NFC capabilities. This is the same function as Apply Pay, Samsung Pay, or Google Pay)
      8. Your phone will quickly scan for the NFC chip and you should now be connected to the S-Series meter.

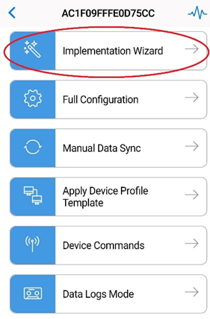

      9. You can now complete the Implementation Wizard through the app.
      10. Select “Get Started!”

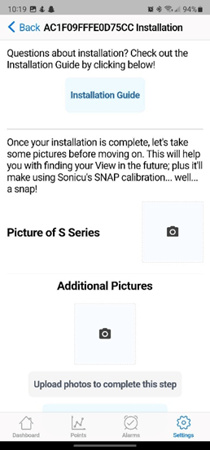

      11. You will be prompted to take pictures of the S-Series meter.

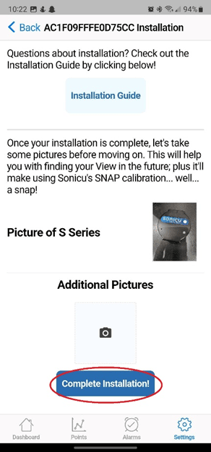

      12. Once you have taken a picture of the meter select “Complete Installation!”

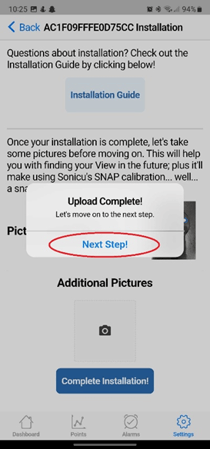

      13. You will see a pop-up to move on to the next step.

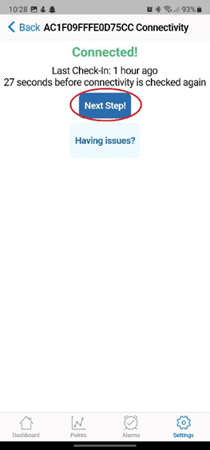

      14. At the top of the page you will see that your S-Series Meter is now connected
      15. Select “Next Step!”

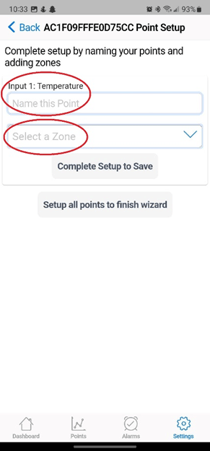

      16. Name the point and use the drop-down to place the point of monitoring in the correct zone.
      17. Select “Setup all points to finish wizard”

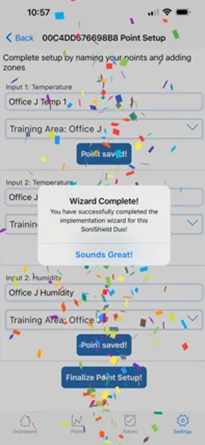

      18. Once the point setup is complete, your implementation wizard is complete for this S-Series meter and you will be rewarded with some confetti!

      Now that your hardware has been installed and can now be seen on the SoniCloud platform, the below checklist has been provided as a reminder of the next steps the Admin needs to take to protect your assets, maintain regulatory compliance, and improve operational efficiency:

      Login to www.sonicumonitoring.com to complete the following steps:

      1. If your site is still in Wizard status, complete the Wizard to view and use your dashboard or reach out to your Customer Success Manager for assistance.
      2. Select the area on the left side of the SoniCloud platform that your newly installed monitoring point is located in.
      3. Click "Edit" and then click the name of the newly added point to open the "Edit Point" properties page.
      4. Verify Point Name and Zone are accurate.".
      5. Click the drop-down arrow on the "Alarm Profile" and select the correct alarm profile to be placed on the new point.
      6. Click "View Alarm Profile" and verify the Excursion ("Threshold Alarms") is on (blue) and high limit is correct.

      For additional questions regarding the S-Series Quick Start Guide or S-Series Meter please contact Sonicu Support for assistance.  Sonicu Support can be reached by email at support@sonicu.com or by calling 317-468-2345.  Sonicu Support is available M-F 8 am-5 PM EST.
