      S-Series Wireless Water Puck Quick Start Installation and Activation Guide

      The Smart Water Leak Detection Solution. Sends alarms and notifications when leaks are detected at 0.5 mm. The compact design makes it easy to mount on a surface or wall as needed without wiring.

      The S-Series Water Leak Detection Puck is only compatible with the SoniLink Hub.  If your Hub has not already been activated, please refer to the SoniLink Hub Quick-Start/Installation Guide before proceeding.

      These sensors are designed for liquid leakage detection including water, weak acid and weak base.  These are not suitable for detecting hazardous chemicals, solvents, oil, fuel, strong acids, or other corrosive liquids.



      Features:

      • Replaceable built-in 590mAh battery with up to 3 years of battery life.  The battery has been pre-installed for your convenience.
      • IP-67 rated waterproof enclosure for harsh environment applications
      • Equipped with NFC for easy configuration with the SoniCloud Mobile App

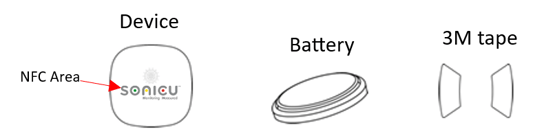

      Hardware Overview

      This sensor is suitable for the following areas:

      • Narrow spaces or corner areas that would require small detection probes.
      • Drain pans, floor drains, pits, etc.
      • Locations where water will reach first or accumulate easily when a leak occurs.

      There are two leak detection probes behind the device.  When the water covers both probes, the device will send alarms.

      Placement of the Sensor:

      • Place the sensor in a location where water will reach first or where it is easy to accumulate when leaks are detected.
      • It is recommended to install multiple devices to ensure the proper coverage necessary for your space.

      Installation:

      1. Select location.
      2. Ensure the installation surface is smooth and free of debris.
      3. Apply the included 3M tape to the back cover.
      4. Remove the protective backing.

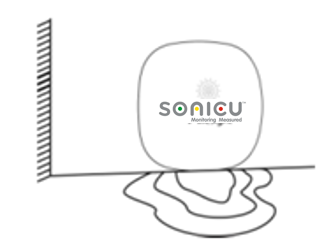

      5. Position the sensor on the wall or floor near the detection area, ensuring that the two leak detection probes are facing the detection area.

      Note:  Do not touch the metal pins to metal objects to avoid errors in alarm reporting.

      Replacing the Battery Power Supply

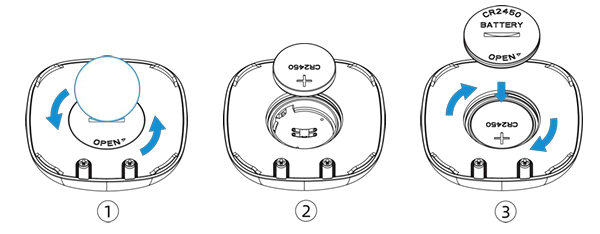

      1. Put a coin (or other tool with a suitable size) into the groove of the battery back cover, turn the battery back cover and remove it.
      2. Insert the battery into the sensor with the positive facing up. After inserting, the device will power on automatically.
      3. Put the battery cover back onto the device and tighten it.

      Your S-Series Wireless Leak Detector has now been installed. Please follow the SoniClould mobile app instructions to activate your sensor and add it to the SoniCloud site.

      Device Setup via SoniCloud Mobile

        1. Open SoniCloud Mobile (download using the QR code)
        2. Go to settings at the bottom right of the mobile app.
        3. Select “Scan for S-Series Meters (NFC)”
        4. Hold your phone to the meter to scan for the NFC chip (your phone must have NFC capabilities. This is the same function as Apply Pay, Samsung Pay, or Google Pay)

          For Android devices:


           For iPhone iOS devices:


        5. Your phone will quickly scan for the NFC chip, and you should now be connected to the S-Series Door Closure Sensor

          Note: Phone cases may reduce connectivity scanning and may be necessary to remove the phone case from the smartphone for the NFC chip to connect fully.

        6. You can now complete the Implementation Wizard through the app.
        7. Select “Get Started!”


        8. You will be prompted to take pictures of the S-Series meter.


        9. Once you have taken a picture of the meter select “Complete Installation!”

        10. You will see a pop-up to move on to the next step.

        11. At the top of the page, you will see that your S-Series Meter is now connected.
        12. Select “Next Step!”
        13. Name the point and use the drop-down to place the point of monitoring in the correct zone.
        14. Select “Setup all points to finish wizard”

          Once the point setup is complete, your implementation wizard is complete for this S-Series meter and you will be rewarded with some confetti!

      Now that your hardware has been installed and can now be seen on the SoniCloud platform, the below checklist has been provided as a reminder of the next steps the Admin needs to take to protect your assets, maintain regulatory compliance, and improve operational efficiency:

      Login to www.sonicumonitoring.com to complete the following steps:

      1. If your site is still in Wizard status, complete the Wizard to view and use your dashboard or reach out to your Customer Success Manager for assistance.
      2. Select the area on the left side of the SoniCloud platform that your newly installed monitoring point is located in.
      3. Click "Edit" and then click the name of the newly added point to open the "Edit Point" properties page.
      4. Verify Point Name and Zone are accurate.
      5. Verify Scaling Profile indicates "Leak Detector".  If Leak Detector is not shown, use the drop down and select "Leak Detector".
      6. Click the drop-down arrow on the "Alarm Profile" and select the correct alarm profile to be placed on the new point.
      7. Click "View Alarm Profile" and verify the Excursion ("Threshold Alarms") is on (blue) and high limit is correct.

      For additional questions regarding the S-Series Wireless Leak Detector, please contact Sonicu Support for assistance.  Sonicu Support can be reached by email at support@sonicu.com or by calling 317-468-2345.  Sonicu Support is available M-F 8 am-5 PM EST.
